Land pump

Self-priming pump

Basic Specifications Selection chart Assembly diagram Outer view

자흡수

Standard specifications

Mode	GSP
Maximum range of flow (m2/min)	0.1~3.0
Maximum fluid (m)	4~22
Temperature for use (℃)	0~60
Revolution	1750rpm
Rotation	CW (Clockwise from drive shaft)
Bore	40~150mm (in Discharge Bore Size)
Flange	KS B 1511

Usage
- For basement and manhole drainage
- For civil construction drainage
- For agricultural irrigation

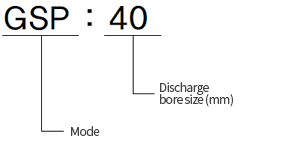

Designation

Selection chart

Model	Suction bore size	Discharge bore size	Power HP	Discharge volume m3/min	Pump head m	Discharge volume m3/min	Pump head m	Discharge volume m3/min	Pump head m	Bearing size	M/S size
GSP 40	40	40	0.75	0.07	12	0.15	10	0.25	7	ф25	ф184
GSP 50	50	50	1.5	0.15	13	0.25	11	0.35	8		ф224
GSP 65	65	65	2.2	0.25	15	0.4	12	0.5	10		ф275
GSP 80	80	80	3.7	0.3	19	0.5	17	0.7	14		ф184
GSP 100	100	100	7.5	0.8	20	1.0	17	1.2	15		ф235
GSP 125	125	125	11	1.2	21	1.8	18	2.3	15	ф35	ф284
GSP 150	150	150	15	1.8	21	2.4	19	3.0	15		ф184

자흡수-선정도

자흡수-조립구조도

자흡수-외형도

Dimensions

(Unit:mm)

Model	Suction	Discharge	Power (kW)	Outline dimension (mm)
Model	Suction	Discharge	Power (kW)	A	C	M	N	L1	L2	L3	B	B1	H	h	h1	h2	h3	F	G
GSP 40	40	40	0.75	784	284	300	200	600	120	660	200	170	400	75	50	190	135	45	M16
GSP 50	50	50	1.5	785	330	310	145	630	120	390	210	180	439	75	50	208	156	50	M16
GSP 65	65	65	2.2	840	350	335	155	700	120	460	240	210	450	75	50	215	160	50	M16
GSP 80	80	80	3.7	890	385	340	165	730	120	490	265	235	495	75	65	205	215	80	M16
GSP 100	100	100	7.5	890	385	340	180	730	120	490	265	235	550	75	60	273	202	80	M20
GSP 125	125	125	7.5	1175	476	500	200	980	150	680	260	320	640	125	60	245	270	80	M20
GSP 125	125	125	11	1265	565	500	200	1100	150	800	360	320	640	125	60	245	270	80	M20
GSP 150	150	150	15	1474	639	585	250	1250	200	850	380	350	785	125	90	372	288	80	M20
