Land pump

Double suction volute pump

Basic Specifications Outer view Material and functions

양흡입

Standard specifications

Mode	GDV
Maximum range of flow (m2/min)	3~60
Maximum fluid (m)	10~100
Temperature for use (℃)	0~105
Revolution	1150, 1750rpm
Rotation	CW (Clockwise from drive shaft)
Bore	150~300mm(in discharge bore size)
Flange	KS B 1511

Usage
- For water supply and sewers
- For transmission and irrigation pipes
- For agricultural transport
- For generators and intakers

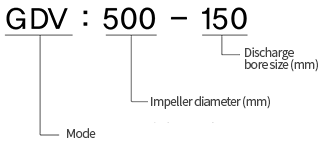

Designation

Assembly cross section

양흡입-외형도

Material

Classification	Casing	Impeller	Shaft)	Sealing device
Standard material	GC 200	GC200	SM45C	Gland Packing
Option material	SSC13, SSc14, GCD450	BC6, SSC13, SSC14	STS304, STS316	Mechanical Seal

Function

Model	Suction	Discharge	Flange form		Bearing size		M/S size		Weight of pump (kg)
Model	Suction	Discharge	Suction	Discharge	Driven	End	Driven	End	Weight of pump (kg)
GDV 280-150	200	150	RF	RF	6310	6310	70	70	370
GDV 340-150	200	150	FF	FF	6311	6311	80	80	394
GDV 400-150	200	150	RF	RF	6310	6310	70	70	443
GDV 500-150	200	150	RF	RF	6310	6310	70	70	563
GDV 280-200	250	200	FF	FF	6311	6311	80	80	483
GDV 340-200	250	200	RF	RF	6312	6312	90	90	523
GDV 400-200	250	200	RF	RF	6314	6314	100	100	587
GDV 280-250	300	250	RF	RF	6312	6312	90	90	676
GDV 340-250	300	250	RF	RF	6314	6314	100	100	732
GDV 400-250	300	250	RF	RF	6314	6314	100	100	810
GDV 280-300	350	300	RF	RF	6314	6314	100	100	996
