Land pump

Multi-stage turbine pump

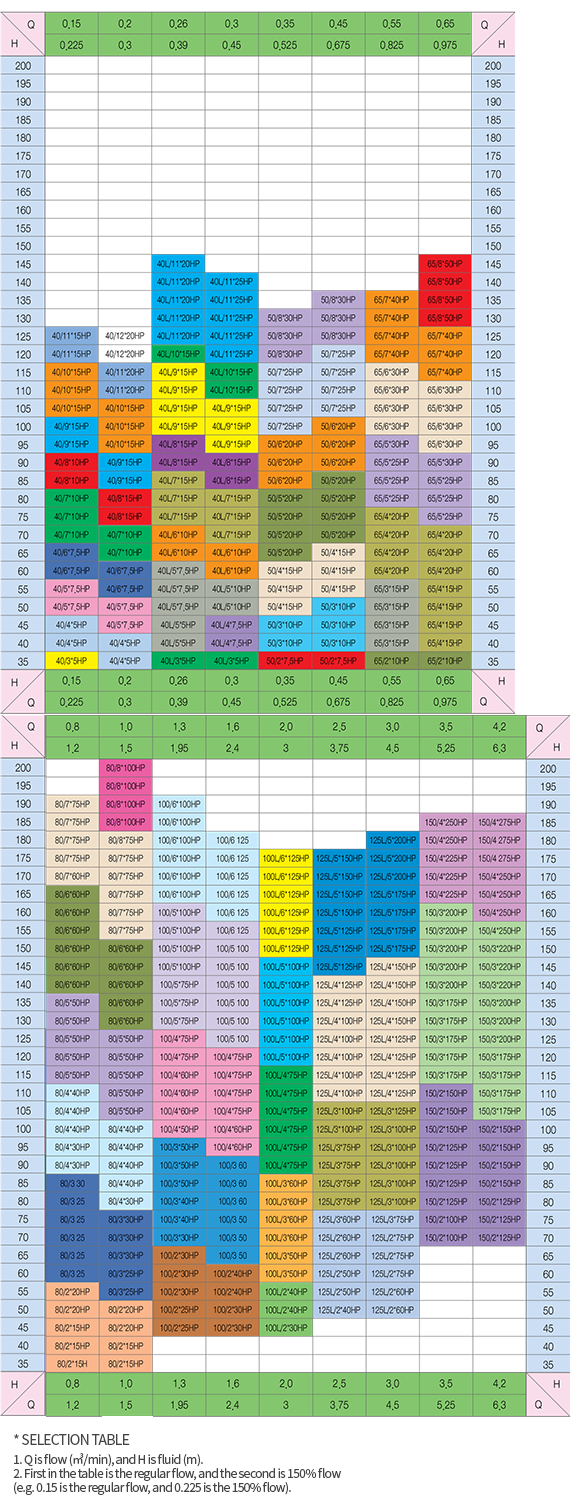

Basic Specifications Selection chart Material and functions Outer view Selection chart

Standard specifications

Mode	GMT
Maximum range of flow (m2/min)	0.1~6.6
Maximum fluid (m)	20~200
Temperature for use (℃)	0~90
Revolution	1450, 1750rpm
Rotation	CW (Clockwise from drive shaft)
Bore	40~150mm (in discharge bore size)
Flange	KS B 1511

Usage
- For water supply to apartments and buildings
- For fire extinguishers, for chemical industry
- For water mains and agriculture

Designation

다단-조립도

다단- 선정도

Outer view of system

(Unit:mm)

MODEL	Outline dimension (mm)								Header size (suction x discharge)
MODEL	A	C	D	E	F	L	B	H	Header size (suction x discharge)
2 GBS 3:2~25	580	295	345	640	795	420	560	140	50×50
3 GBS 3:2~25	880	295	345	640	815	720	560	140	65×65
4 GBS 3:2~25	1180	295	345	640	825	1020	560	140	80×80

Material

Classification	Casing	Impeller	Shaft	Sealing device
Standard material	GC 200	GC200	SM45C	Gland Packing
Option material	SSC13(14), GCD	BC6, SSC13(14)	STS304(316)	Mechanical Seal

Function

Model	Bore Size	Discharge volume m3/min	Specifications of stages	2S	3S	4S	5S	6S	7S	8S	9S	10S	Bearing size		M/S size
Model	Bore Size	Discharge volume m3/min	Specifications of stages	2S	3S	4S	5S	6S	7S	8S	9S	10S	Driven	End	Driven	End
GMT 40	50×40	0.16	Pump head (m)	25	35	45	55	65	80	90	100	115	6306	6306	ф35	ф35
GMT 40	50×40	0.16	Power (HP)	3	5	5	7.5	7.5	10	10	15	15	6306	6306	ф35	ф35
GMTL 40	50×40	0.3	Pump head (m)	25	35	45	55	65	80	90	100	115	6306	6306	ф35	ф35
GMTL 40	50×40	0.3	Power (HP)	5	5	7.5	10	10	15	15	15	20	6306	6306	ф35	ф35
GMT 50	65×50	0.45	Pump head (m)	35	50	65	85	100	120	135			6306	6306	ф35	ф35
GMT 50	65×50	0.45	Power (HP)	7.5	10	15	20	20	25	30			6306	6306	ф35	ф35
GMT 65	80×65	0.65	Pump head (m)	35	55	70	85	105	125	145			6308	6308	ф43	ф43
GMT 65	80×65	0.65	Power (HP)	10	15	20	25	30	40	50			6308	6308	ф43	ф43
GMT 80	100×80	1.0	Pump head (m)	50	75	100	120	150	175	200			6308	6308	ф45	ф45
GMT 80	100×80	1.0	Power (HP)	20	30	40	50	60	75	100			6308	6308	ф45	ф45
GMT 100	125×100	1.6	Pump head (m)	60	90	120	150	180					6309	6308	ф55	ф48
GMT 100	125×100	1.6	Power (HP)	40	60	75	100	125					6309	6308	ф55	ф48
GMTL 100	125×100	2.0	Pump head (m)	55	85	115	145	175					6309	6308	ф55	ф48
GMTL 100	125×100	2.0	Power (HP)	40	60	75	100	125					6309	6308	ф55	ф48
GMT 125	150×125	2.5	Pump head (m)	60	90	130	155	175					6311	6310	ф65	ф55
GMT 125	150×125	2.5	Power (HP)	50	75	100	125	150					6311	6310	ф65	ф55
GMTL 125	150×125	3.0	Pump head (m)	70	100	145	180						6311	6310	ф65	ф55
GMTL 125	150×125	3.0	Power (HP)	75	100	150	200						6311	6310	ф65	ф55
GMT 150	200×150	4.2	Pump head (m)	100	135	165							6313	6312×2	ф75	ф65
GMT 150	200×150	4.2	Power (HP)	150	200	250							6313	6312×2	ф75	ф65

다단-외형도

Model	Bore		Stage	MOTOR		Outline dimension (mm)									Weight of pump (kg)
Model	Suc.	Dis.	Stage	kw	HP	A	f	E	D	L	B	H	H1	K	Weight of pump (kg)
GMT 40	50	40	2S	2.2	3	1020	277	139	231	800	250	425	250	172	87
			3S	3.7	5	1099	277	205	231	860	250	425	250	172	100
			4S	3.7	5	1153	277	271	231	920	250	425	250	172	113
			5S	5.5	7.5	1275	277	337	231	1040	250	425	250	172	126
			6S	5.5	7.5	1429	277	403	231	1200	250	425	250	172	139
			7S	7.5	10	1600	277	469	231	1300	300	425	250	172	152
			8S	7.5	10	1614	277	535	231	1360	300	425	250	172	165
GMTL 40	50	40	2S	3.7	5	1012	277	139	231	800	250	460	260	172	116
			3S	5.5	7.5	1161	277	205	231	920	250	460	260	172	141
			4S	7.5	10	1253	277	271	231	1020	250	460	260	172	166
			5S	11	15	1404	277	337	231	1150	300	460	260	172	191
			6S	11	15	1463	277	403	231	1210	300	460	260	172	216
			7S	15	20	1566	277	469	231	1310	300	460	260	172	241
GMT 50	65	50	2S	5.5	7.5	1132	287	148	234	860	250	460	260	200	122
			3S	7.5	10	1232	287	217	234	960	250	460	260	200	147
			4S	11	15	1399	287	286	234	1110	300	460	260	200	172
			5S	15	20	1499	287	355	234	1210	300	460	260	200	197
			6S	15	20	1569	287	424	234	1280	300	460	260	200	222
			7S	18.5	25	1655	287	493	234	1350	300	470	270	200	247
GMT 65	80	65	2S	7.5	10	1276	347	183	263	1030	300	480	270	200	147
			3S	11	15	1455	347	268	263	1190	300	480	270	200	176
			4S	15	20	1571	347	353	263	1310	300	480	270	200	205
			5S	18.5	25	1684	347	438	263	1390	300	480	270	200	234
			6S	22	30	1756	347	523	263	1460	300	480	270	200	263
			7S	30	40	1866	347	555	263	1570	380	480	270	200	292
GMT 80	100	80	2S	15	20	1454	354	185	282	1200	300	540	290	245	185
			3S	22	30	1579	354	275	282	1290	300	540	290	245	221
			4S	30	40	1701	354	365	282	1410	380	540	290	245	257
			5S	37	50	1870	354	455	282	1560	380	550	300	245	293
			6S	45	60	1954	354	545	282	1650	380	550	300	245	329
GMT 100	125	100	2S	30	40	1495	338	260	232	1190	300	540	290	270	194
			3S	45	60	1713	338	356	232	1380	380	550	300	270	230
			4S	55	75	1868	338	452	232	1480	380	550	300	270	266
			5S	75	100	2018	338	548	232	1660	380	581	331	270	302
			6S	90	125	2168	338	644	232	1760	468	615	365	270	338
GMTL 100	125	100	2S	30	40	1549	338	260	232	1190	380	600	330	270	258
			3S	45	60	1736	338	356	232	1380	380	601	331	270	325
			4S	55	75	1861	338	452	232	1480	468	635	365	270	392
			5S	75	100	2075	338	548	232	1660	521	635	365	270	459
			6S	90	125	2139	338	644	232	1760	521	665	395	270	526
GMT 125	150	125	2S	55	75	1706	400	304	255	1300	380	601	331	310	270
			3S	75	100	1901	400	414	255	1450	468	635	365	310	337
			4S	90	125	2144	400	524	255	1670	521	635	365	310	404
			5S	110	150	2244	400	634	255	1770	521	665	395	310	471
			6S	132	175	2429	400	744	255	1950	521	665	395	310	538
GMTL 125	150	125	2S	55	75	1795	400	304	255	1390	468	670	370	310	385
			3S	75	100	1943	400	414	255	1510	521	670	370	310	490
			4S	110	150	2172	400	634	255	1730	521	695	395	310	595
GMT 150	200	150	2S	110	150	2274	508	376	306	1840	521	809	429	380	450
			3S	150	200	2379	508	521	306	1890	521	809	429	380	560
			4S	175	250	2724	508	666	306	2240	521	809	429	380	670
