볼류트펌프
  • Standard specifications
    Mode GSV
    Maximum range of flow (m2/min) 0.1~11
    Maximum fluid (m) 5~60
    Temperature for use (℃) 0~90
    Revolution 1450, 1750rpm
    Rotation CW (Clockwise from drive shaft)
    Bore 32~150mm (in discharge bore size)
    Flange KS B 1511
  • Usage
    • For hot/cold water circulation in apartments and buildings
    • For general water, for industrial water
    • For civil works, for agricultural irrigation

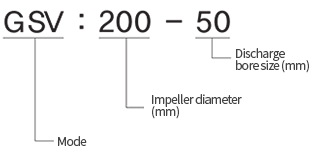

  • Designation

    b-1-1-en

조립도

편흡입선정도

  • Material
Classification Casing Impeller Shaft Sealing device
Standard material GC 200 GC200 SM45C Gland Packing
Option material SSC13(14), GCD BC6, SSC13(14) STS304(316) Mechanical Seal
  • Function
Model Bore Size
SucxDis		 Power
HP		 Discharge volume
m3/min		 Pump head
m		 Discharge volume
m3/min		 Pump head
m		 Discharge volume
m3/min		 Pump head
m		 Bearing
size		 M/S
size
GSV 160-32 40×32 1 0.07 13 0.12 11.5 0.17 8 6305zz ф25
GSV 200-32 2 20 18 13
GSV 160-40 54×40 2 0.15 13 0.25 11.5 0.36 8
GSV 200-40 3 20 18 16
GSV 250-40 5 32 29 26 6306zz ф35
GSV 315-40 10 50 46 40 6307zz ф35
GSV 160-50 65×50 3 0.3 13 0.5 11.5 0.7 8 6305zz ф25
GSV 200-50 5 20 18 16
GSV 250-50 7.5 32 29 23 6306zz ф35
GSV 315-50 15 50 46 40 6307zz ф35
GSV 160-65 80×65 5 0.6 13 1.0 11.5 1.4 8 6306zz ф30
GSV 200-65 7.5 20 18 16
GSV 250-65 15 32 29 24 6307zz ф35
GSV 315-65 25 49 46 42
GSV 200-80 100×80 10 1.0 19 1.58 17 2.1 12 6306zz ф30
GSV 250-80 20 32 29 26 6307zz ф35
GSV 315-80 30 49 46 42
GSV 400-80 60 78 7 62 6409zz ф45
GSV 200-100 125×100 15 1.2 19 2.5 17 3.4 12 6307zz ф35
GSV 250-100 25 32 29 24
GSV 315-100 50 49 46 38
GSV 400-100 75 78 72 62 6409zz ф45
GSV 200-125 150×125 20 2.4 18 4.0 15 5.2 8 6307zz ф35
GSV 250-125 40 31 28 23 6409zz ф45
GSV 315-125 60 47 44 34
GSV 400-125 125 80 72 62
GSV 250-150 200×150 60 4.0 31 6.33 29 9.9 23
GSV 315-150 100 49 46 24
GSV 400-150 200 80 72 62

편흡입-외형도

Model Suction
bore
size		 Discharge
bore
size		 Power
HP		 GSV Outline Dimensions Weight
of
pump (kg)
a f L1 L2 L3 H h1 h2 h3 B B1 A F
GSV 160-32 40 32 1 80 360 710 115 480 367 132 160 207 300 265 60 M16 33
GSV 200-32 2 415 160 180 235 38
GSV 160-40 54 40 2 367 132 160 207 34
GSV 200-40 3 100 800 130 540 415 160 180 235 330 295 40
GSV 250-40 5 480 180 225 255 370 335 75 M20 52
GSV 160-50 65 50 3 415 160 180 235 330 295 60 M16 37
GSV 200-50 5 435 200 235 43
GSV 250-50 7.5 480 180 225 255 370 335 75 M20 53
GSV 315-50 15 125 470 1090 190 710 605 225 280 325 430 380 78 M16 65
GSV 160-65 80 65 5 100 360 800 130 540 435 160 200 235 330 295 75 40
GSV 200-65 7.5 480 180 225 255 370 335 48
GSV 250-65 15 190 740 550 200 250 300 420 375 M20 70
GSV 315-65 25 125 470 1120 605 225 280 325 450 405 90 91
GSV 200-80 100 80 10 1000 170 660 505 180 250 255 400 365 75 66
GSV 250-80 20 1120 190 740 605 225 280 325 450 405 90 76
GSV 315-80 30 665 250 315 350 96
GSV 400-80 60 530 1260 230 800 890 315 450 440 620 560 100 200
GSV 200-100 125 100 15 470 1120 190 740 580 200 280 300 420 375 90 74
GSV 250-100 25 605 225 325 450 405 88
GSV 315-100 50 140 1250 205 840 690 250 315 375 490 431 105
GSV 400-100 75 530 1340 200 940 915 315 450 465 640 570 100 205
GSV 200-120 150 125 20 470 1120 190 740 665 250 315 350 450 405 90 93
GSV 250-120 40 1250 205 840 730 355 375 490 431 100
GSV 315-120 60 1400 230 940 760 280 405 570 511 110 M20 140
GSV 400-120 125 530 1420 200 1020 915 315 450 466 640 574 100 215
GSV 250-150 200 150 60 160 530 1400 230 940 780 280 375 405 570 511 110 130
GSV 315-150 100 865 315 400 465 640 574 156
GSV 400-150 200 1600 260 1060 195 450 222
Classification Casing Impeller Shaft Sealing device
Standard material GC 200 GC200 SM45C Gland Packing
Option material SSC13(14), GCD BC6, SSC13(14) STS304(316) Mechanical Seal

편흡입-조립구조도
