Good Pump!
best-quality goods with high-end planning and design.

Booster pump　I　Product Overview

펌프1
  • Standard specifications
    Mode GBS
    Maximum range of flow (m2/min) 0.04~6.6
    Maximum fluid (m) 15~245
    Temperature for use (℃) 0~90
    Revolution 3450rpm
    Bore 50~300m
    Total number of pumps 2~6
  • Usage
    • For automatic supply in apartments and buildings
    • For automatic supply of manufacturing equipment
    • For high-pressure spraying and agricultural spraying
  • Designation

    pump1-3en

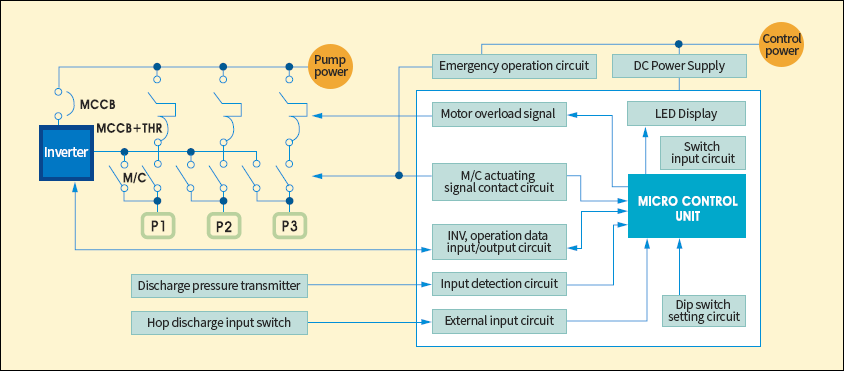

  • Controller specifications

    컨트롤러 사양

Item Content
Operation mode Auto and Manual
LCD display Korean LCD, various graphic screens
Inverter 1HP or above (50~60Hz)
Pressure transmitter 2Wire, 4~20mA, 0~25Bar
Remote control (PC) RS-485 communication (USB TYPE)
pump1-2-en
GBS1series GBS3seriesGBS5seriesGBS10seriesGBS15seriesGBS20seriesGBS32series
  • Selection chart

    부스터-1선정도

  • Outer view of system

    부스터-1외형도

(Unit: mm)

MODEL Outer dimensions (mm) Header size
(suction x discharge)
A C D E F L B H
2 GBS 1:2~27 580 295 345 640 795 420 560 140 50×50
3 GBS 1:2~27 880 295 345 640 815 720 560 140 65×65
4 GBS 1:2~27 1180 295 345 640 825 1020 560 140 80×80
  • Selection chart

    pump1-2-1선정도

  • Outer view of system

    pump1-2-2외형도

(Unit: mm)

MODEL Outer dimensions (mm) Header size
(suction x discharge)
A C D E F L B H
2 GBS 3:2~25 580 295 345 640 795 420 560 140 50×50
3 GBS 3:2~25 880 295 345 640 815 720 560 140 65×65
4 GBS 3:2~25 1180 295 345 640 825 1020 560 140 80×80
  • Selection chart

  • Outer view of system

    pump1-3-2외형도

(Unit: mm)

MODEL Outer dimensions (mm) Header size
(suction x discharge)
A C D E F L B H
2 GBS 5:2~24 650 345 380 725 900 490 560 140 65×65
3 GBS 5:2~24 980 345 380 740 925 820 560 140 80×80
4 GBS 5:2~24 1310 345 380 760 970 1150 560 140 100×100
  • Selection chart

    pump1-4-1선정도

  • Outer view of system

    pump1-4-2외형도

(Unit: mm)

MODEL Outer dimensions (mm) Header size
(suction x discharge)
A C D E F L B H
2 GBS 10:1~16 650 345 380 725 900 490 560 155 65×65
3 GBS 10:1~16 980 345 380 740 925 820 560 155 80×80
4 GBS 10:1~16 1310 345 380 760 970 1150 560 155 100×100
  • Selection chart

    pump1-5선정도

  • Outer view of system

    pump1-5-외형도

(Unit: mm)

MODEL Outer dimensions (mm) Header size
(suction x discharge)
A C D E F L B H
2 GBS 15:2~12 1010 395 645 860 1100 690 790 270 125×125
3 GBS 15:2~12 1460 405 475 880 1160 1190 790 270 150×150
4 GBS 15:2~12 1910 440 510 950 1280 1690 790 270 200×200
  • Selection chart

    pump1-6선정도

  • Outer view of system

    pump1-6외형도

(Unit: mm)

MODEL Outer dimensions (mm) Header size
(suction x discharge)
A C D E F L B H
2 GBS 20:1~10 1010 395 645 860 1100 690 790 270 125×125
3 GBS 20:1~10 1460 405 475 880 1160 1190 790 270 150×150
4 GBS 20:1~10 1910 440 510 950 1280 1690 790 270 200×200
  • Selection chart

    pump1-7-1

  • Outer view of system

    pump1-7외형도

(Unit: mm)

MODEL Outer dimensions (mm) Header size
(suction x discharge)
A C D E F L B H
2 GBS 32:2~10 1010 395 645 860 1100 690 790 270 125×125
3 GBS 32:2~10 1460 405 475 880 1160 1190 790 270 150×150
4 GBS 32:2~10 1910 440 510 950 1280 1690 790 270 200×200
