Underwater sewage pump　I　Product Overview

Basic Specifications Selection chart and
outer view

수중오배수

Standard specifications

Mode	GWE
Maximum range of flow (m2/min)	0.05~1.8
Maximum fluid (m)	3~45
Temperature for use (℃)	0~30
Revolution	3450rpm
Bore	50~100
Flange	KS B 1511

Usage
- For transportation of sewage from buildings and factories
- For transportation of sewage from sewage treatment plants
- For transportation of animal and human waste
- For transportation of sewage with solids

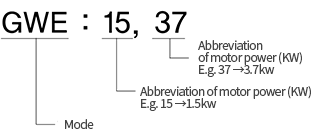

Designation

Usage

IT, NO.	PATRT NAME	MATERIAL
101	CASING	GC200
102	IMPELLER	GC200
103	MOTOR FRAME	GC200
104	MOTOR BRACKET	GC200
105	SHAFT	STS410
106	SUCTION COVER	GC200
107	SUCTION STAND	GC200
108	DISCHARGE ELBOW	GC200
109	BEARING HOUSING	GC200
201	ROTOR	–
202	STATOR	–
301	MECHANICAL SEAL	–
302	OIL SEAL	NBR
401	CABLE COVER	SS400
402	EYE BOLT	SS400
403	BOLT	SS400
404	BEARING COVER	SS400
405	BEARING	–
505	POWER CABLE	–

수중오배수-선정도

Function

Classification	Discharge Bore Size	Power HP	Discharge volume m3/min	Pump head (m)	Weight of pump (kg)	Cable (m)	Recovery line (m)
GWE 8	50 mm	1	0.16	10	36	10	5
GWE 15	50 mm	2	0.25	15	45	10	5
GWE 22	80 mm	3	0.3	20	50	10	5
GWE 37	80 mm	5	0.5	20	76	10	5
GWE 55	100 mm	7.5	0.6	25	82	10	5
GWE 75		10	0.8	30	140	10	5
GWE 110		15	1.0	35	155	10	5
GWE 150		20	1.2	40	160	10	5

Auto-desorption device

MODEL	Bore size (mm)
GAT 50	50
GAT 80	80
GAT 100	100

외형도-수중오배수

Size

MODEL	A	B	фC	D	фE	H
GWE 8	410	250	185	185	215	450
GWE 15	420	250	210	190	235	470
GWE 22	440	260	210	220	235	490
GWE 37	520	300	250	250	320	620
GWE 55	560	320	250	250	320	620
GWE 75	580	330	310	310	320	810
GWE 110	580	330	310	310	320	810
GWE 150	580	330	310	310	320	850
